AMSDAL Glue Project Overview

Packages overview

The AMSDAL Glue project is a comprehensive Python interface that includes three main packages: amsdal-glue-core, amsdal-glue-connections, and amsdal-glue. These packages work together to provide a high-level abstraction for interacting with multiple databases simultaneously, simplifying the development and maintenance process of database-related tasks in Python applications.

  1. amsdal-glue-core: This is the core package of the AMSDAL Glue project. It provides the fundamental data models and interfaces that allow developers to implement their own solutions from scratch. It includes classes and functions for managing database connections, executing commands, and handling schema operations.

  2. amsdal-glue-connections: This package provides the functionality for managing connections to different types of databases. It includes implementations for various connections such as SQLite, PostgreSQL, and others. It abstracts the specifics of each database type, allowing developers to interact with different databases using a unified interface.

  3. amsdal-glue: This is the main package that developers interact with. It is a ready-to-use package that provides default implementations of all interfaces from the core package. It is designed to cover 90% of all tasks that a developer may encounter, providing a high-level interface for performing database operations, such as querying data, executing commands, and managing schemas.

Together, these packages make the AMSDAL Glue project a powerful tool for working with databases in Python applications. They enable developers to interact with multiple databases simultaneously, abstract the specifics of each database type, and simplify the process of writing and maintaining database-related code.

Repository structure

  • /libs/core/: Contains the source code for the amsdal-glue-core package.
  • /libs/connections/: Contains the source code for the amsdal-glue-connections package.
  • /libs/glue/: Contains the source code for the amsdal-glue package.

Architecture overview

The architecture of the AMSDAL Glue project is primarily defined in the amsdal-glue-core package, which serves as the foundation for the entire project. The other two packages, amsdal-glue-connections and amsdal-glue, build upon this foundation by providing implementations of the interfaces and data structures defined in the core package.

The core package defines the data structures and interfaces that form the basis of the AMSDAL Glue project. It acts as a data protocol, outlining the rules for how data is structured and how different interfaces interact with each other. This allows developers to implement their own solutions from scratch, providing a high degree of flexibility and control.

The architecture of the AMSDAL Glue project follows the CQRS pattern. This means that operations on data are divided into two distinct types: queries (which retrieve data) and commands (which modify data). This separation of concerns makes the system easier to understand and maintain, and allows for greater flexibility in how operations are implemented.

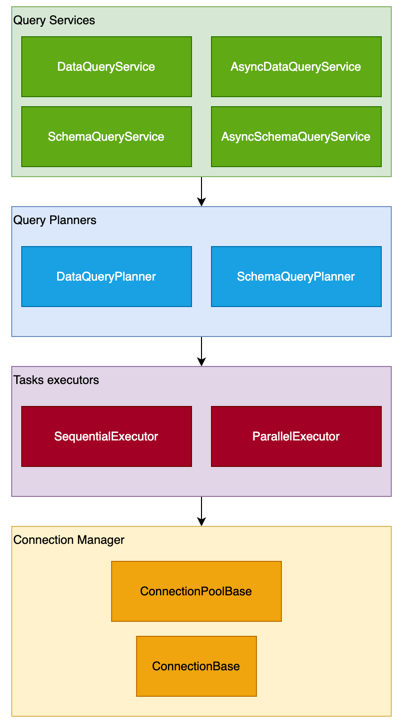

Here is a diagram that illustrates the architecture of the Queries in the AMSDAL Glue project:

AMSDAL Glue query architecture AMSDAL Glue query architecture

In this diagram, we can see there are four main components:

  • Query services
  • Query planners
  • Tasks executors
  • Connection manager

The query services are high level interfaces that user interacts with to perform queries. They are several query services:

  • DataQueryService - for querying data
  • AsyncDataQueryService - for querying data asynchronously
  • SchemaQueryService - for querying schemas
  • AsyncSchemaQueryService - for querying schemas asynchronously

The service is responsible for interacting with the query planner to create a query plan, run tasks execution, and forming the final result (including handling execution errors).

The planner's role is to formulate a query plan derived from the query request. It dissects the query into tasks and organizes them into a plan using chain and group tasks, all of which is contingent on the input query and the established set of connections.

The task executor is responsible for executing the tasks in the query plan. The chain task executor is responsible for executing tasks sequentially, while the group task executor is responsible for executing tasks in parallel.

The connection manager is responsible for managing the connections to the databases. It operates with the connection pool, which provides an ability to reuse connections and manage their lifecycle for performance optimization.

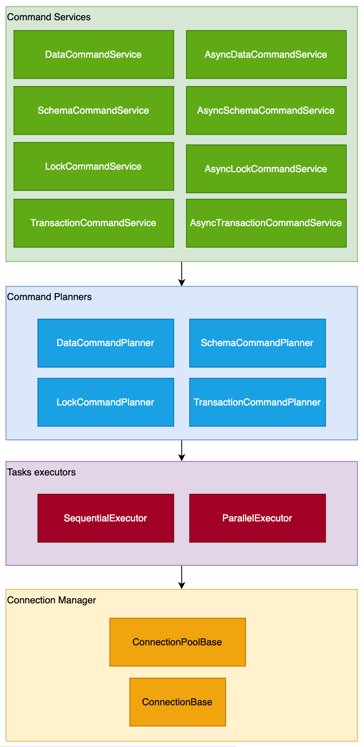

The similar architecture is applied to the Commands in the AMSDAL Glue project:

AMSDAL Glue command architecture AMSDAL Glue command architecture

As we can see, there are more services for commands, that includes services for locking, transactions, schema and data management commands.

Quick start

To get started with the AMSDAL Glue project, you need to:

  1. Register all managers, services, executors.
  2. Register all connection pools via ConnectionManager.

The amsdal-glue package provides a convenient way to get started with the AMSDAL Glue project. It includes default implementations of all interfaces from the core package, allowing you to quickly set up and start using the project without having to write any custom code.

Here is an example of how to get started with the AMSDAL Glue project using the amsdal-glue package:

from amsdal_glue import init_default_containers

init_default_containers()

This code initializes the default containers, which register all managers, services, and executors needed to start working with the AMSDAL Glue project. Once you have initialized the containers, you can start registering connection pools via the ConnectionManager and begin interacting with databases using the high-level interfaces provided by the amsdal-glue package:

from amsdal_glue import Container, ConnectionManager, DefaultConnectionPool, SqliteConnection

sql_connection_pool = DefaultConnectionPool(SqliteConnection, db_path='customers.sqlite', check_same_thread=False)
connection_mng = Container.managers.get(ConnectionManager)

# Register the connection pool as default one (not related to any schema)
connection_mng.register_connection_pool(sql_connection_pool)

Read more about connection manager, pools and multiple databases connections in the Multiple connections section.

More examples of queries and commands can be found in the Examples section.
